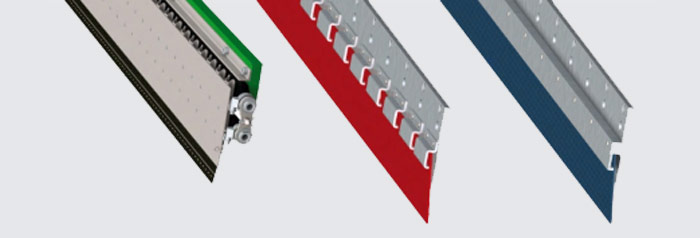

Heavy Duty Blade & Blade Holders

KF-35A

Widely used as the industry standard for rigid style blade holders, and suitable for most doctor positions. The KF-35A has micro-adjusting screws for profiling blade-to-roll fit, and accepts virtually any blade thickness. All 316 stainless steel construction.

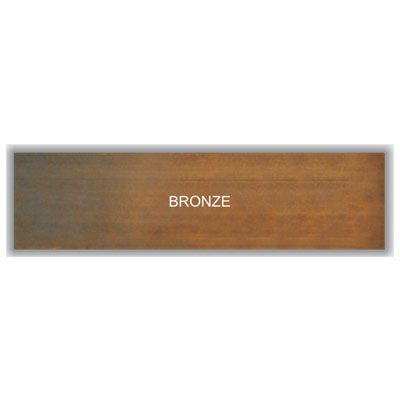

RZ - BRONZE

• Hard rolled bronze.
• Hardness = 205 HV.
• Standard thicknesses: 0.89 - 1.25 mm

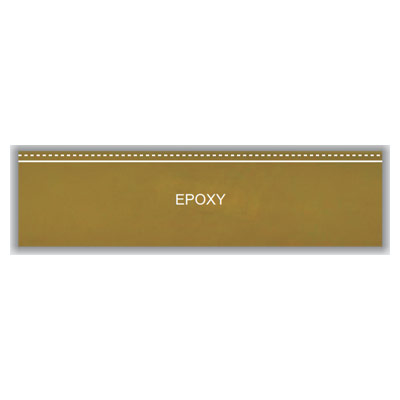

R7 - EPOXY

• Fiberglass layers pressed with epoxy resin.
• Temperature resistance up to 175°C.
• Standard thicknesses: 1.45 - 1.90 - 2.30 - 2.80 mm

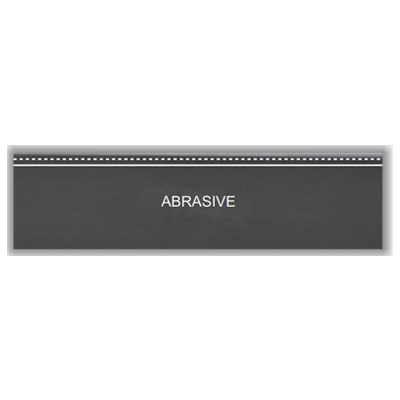

RR - ABRASIVE

• Fiberglass layers with addition of abrasive fillers
• to improve the cleaning action, pressed with epoxy resin.
• Temperature resistance up to 175°C.
• Standard thicknesses: 1.50 - 2.00 mm

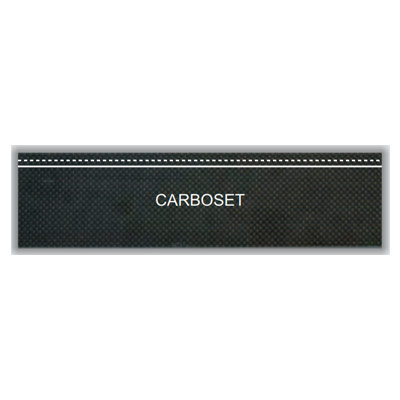

R1 - CARBOSET

• Fiberglass and 2 carbon fiber layers pressed with epoxy resin.
• Temperature resistance up to 175°C.
• Standard thicknesses: 1.45 - 2.00 mm

Blade Holders
